CNC Router ST1212A Integrated control cabinet for advertising signs making

Machine Features:

        Ball Screw driving CNC Router ST1212 is very suitable and warmly welcome for small shop or home hobby woodworkers. With samll working table and cost effective kits, it si very popular in the market, especially for processing small workpiece such as wood craft, decorative products, sign.


      1) The effective working area can be designed according your requirement.
     2) Taiwan TBI ball screw for Z axis, assure machine frame of better precision.
     3) With water cooling spindle, low noise, vigorous cutting strength and long time mass processing.
     4) All the specifications can be customized according to your requirements.

      5)Electric cabinet and Machine body integral design,more save space.


Application:

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.


Technical Parameters:


ModelST1212A
working area1200*1200mm,1200*2400mm(Customized)
Spindle power2.2 KW water cooling spindle
Drive systemStepper motor(Option: Panasonic, Yaskawa,Delta servo motor and driver)
GuideHIWIN/PMI(Taiwan)
Control systemDSP A11(Option:NC studio,mach 3,etc)
Max Running speed30000mm/min
Max working speed15000mm/min
Working accuracy±0.05mm
Re-positioning accuracy±0.02mm
Power supply220V/1Ph/50Hz
G.W.800kgs±

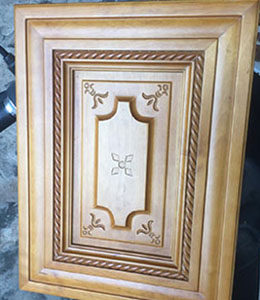

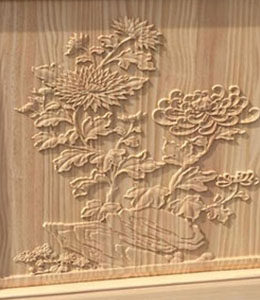

Sample show:


20191015130806738.jpg@!w1600



20150528-arylic sign.jpg
