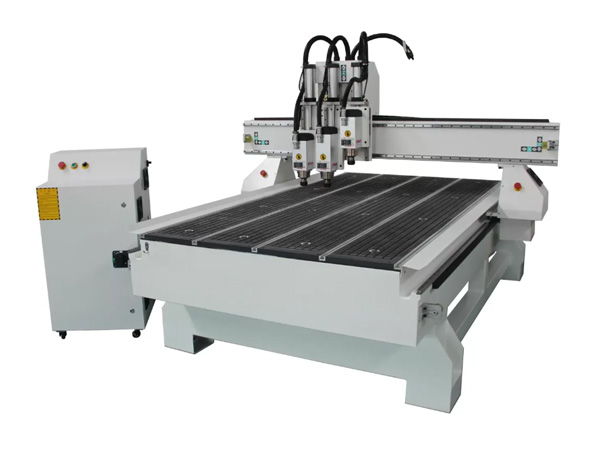

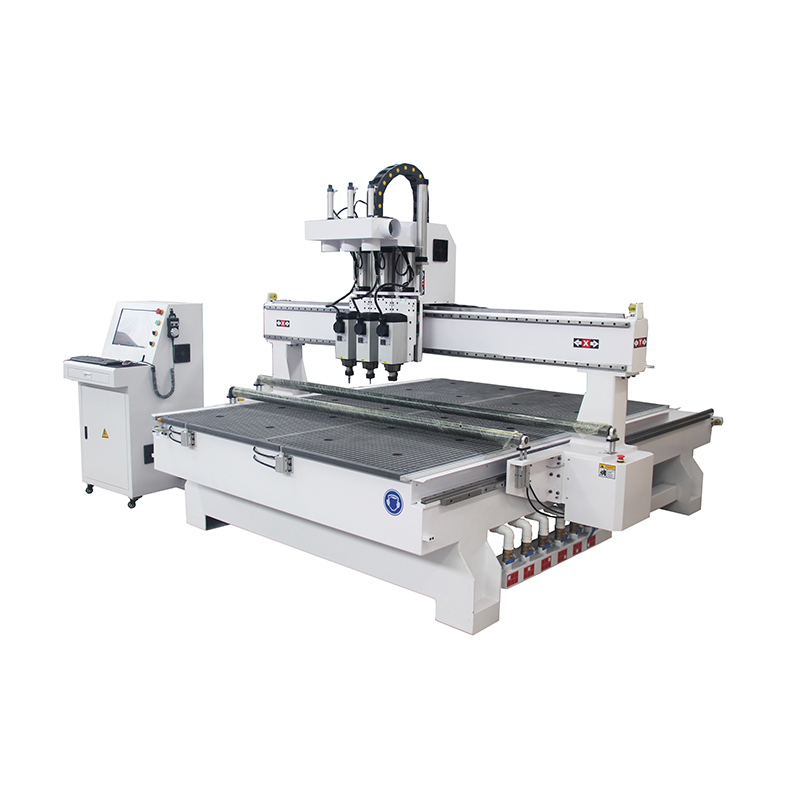

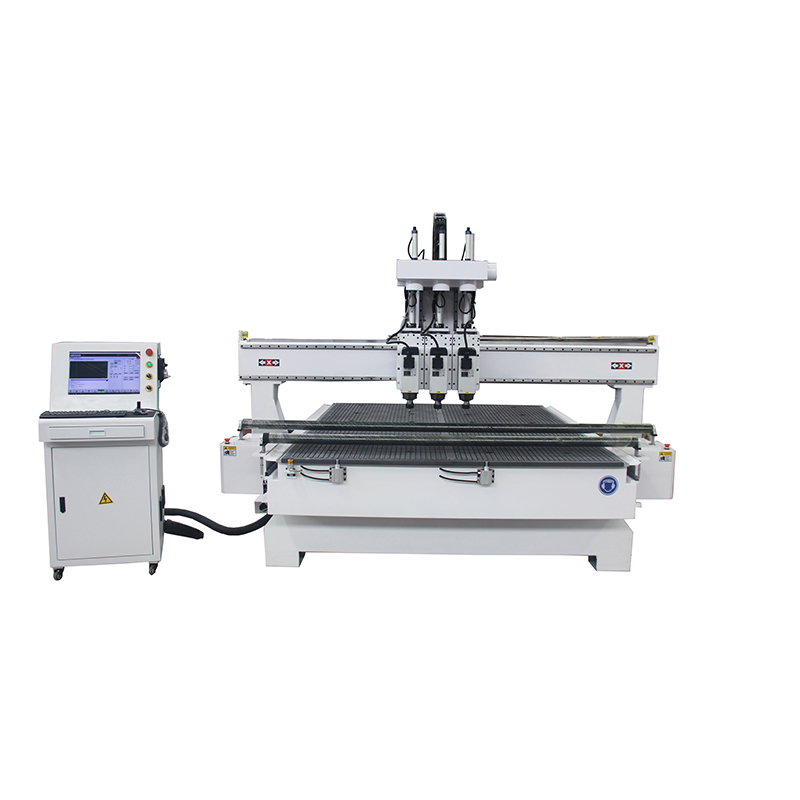

Pneumatic Three Process CNC Router ST1325AT

Pneumatic Dual/Three Process CNC Router
Details
Machine Features:

1.Industralized welded machine structure, quenching by dragon gatemilling machining high preision, ensure high rigidity and high accuracy.
2.Professional genuine controlling system, our software is compatible with Tpye3, Artcam, JDPaint, Ug and CAD/CAM software.
3.Z axis with imported Taiwan TBI rolling ball screw and PMI linear raillcan be ensure the machining accuracy

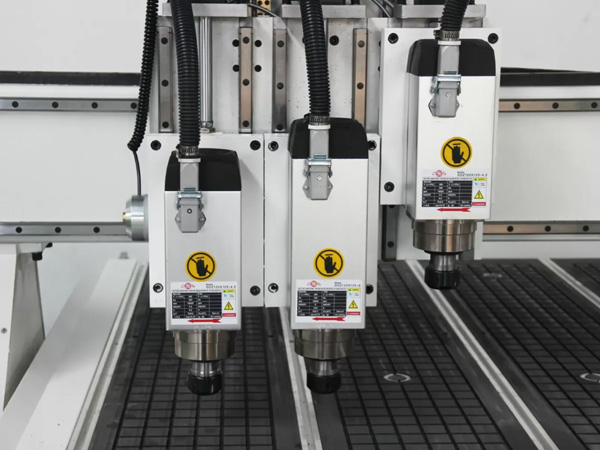

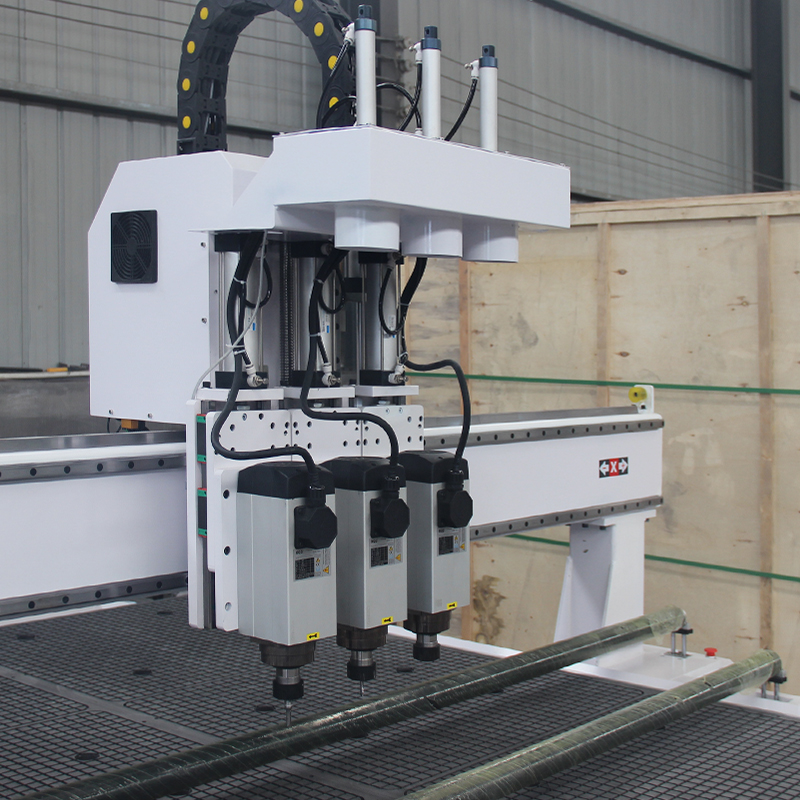

4.Two/three processes, the main spindle can realize the mutual switching, improve work efficiency
5.Y axis with dual motor drive, the drive system of large torque, highload under the processing environment can also be easily

Application:

1.Panel fumiture, solid wood furniture, electronics industry, advertisingdecoration, sound box, speakers musical instruments, soft bag, walls,ect
2.Wood, plexiglass, anti-special board, artificial stone, epoxy resin,PVC, ABC, copper and aluminum.

Technical Parameters:


Model ST1325AT
working area 1300x2500x200mm Options: 1500x3000x200mm 2000x3000x200mm(Customized)
Spindle power 3.5/4.5/6.0Kw(options)
Guide HIWIN/PMI(Taiwan)
Control system PM95A-3L/NK105G3
Motor and Driver Stepper Motor and Leadshine Driver /Servo motor and Driver
Max Running speed 40000mm/min
Max working speed 25000mm/min
Working accuracy ±0.05
Repositioning accuracy ±0.02
Power supply AC380/50HZ
G.W. 1500Kg

Accessories:





Dust collector
Air vacuum pump
Mist cooling set(For metal)

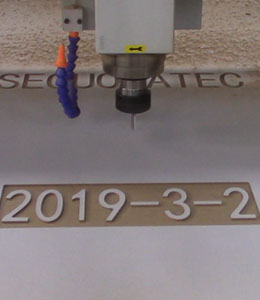

Sample Show:
