CO2 laser machine now is widely use in many industry, such as Crafts, Leather, Garment, advertising and decorations, etc. It’s also called CO2 Laser Cutter, CO2 Laser Engraving Machine, CO2 Laser Cutting Machine, CO2 Laser Engraver, etc. Today in this article, we are going to introduce a buying guide to the CO2 Laser Machine, especially to who are newbie of CO2 Laser Engraving & Cutting, but want to invest a machine to develop their business.

Generally, we will talk the following topics:

1:Basic Introduction to CO2 Laser Machine
2:What materials can CO2 laser machine process?
3:What are the main parts of CO2 laser machine?
4:What are the different model of CO2 laser machine?
5:How much does a CO2 laser machine cost?

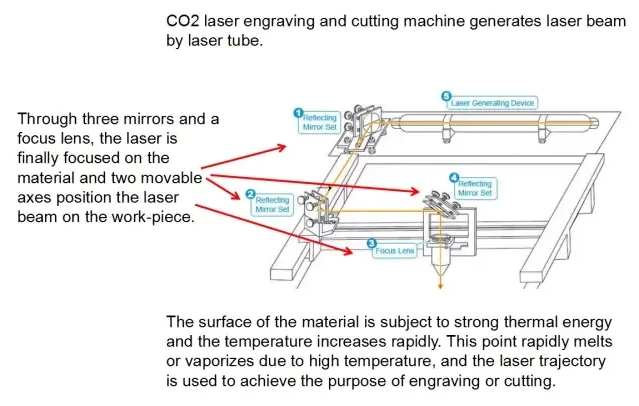

Topic 1：How does a CO2 laser machine work?

TOPIC 2: What materials can CO2 laser machine process?

Acrylic
MDF
Wood
PVC
Color-board
Rubber
Leather
Paper
Plastic
ABS
Paper

Topic 3: What are the main parts of CO2 laser machine?

A. Optical system
1. Laser tube
2. Reflective Mirrors & focusing mirror
3. Red light pointer

B.Power system
1. Laser power supply
2. Stepper motor and driver
3. Guideway
4. Belt transmission system (Screw transmission system for optional)

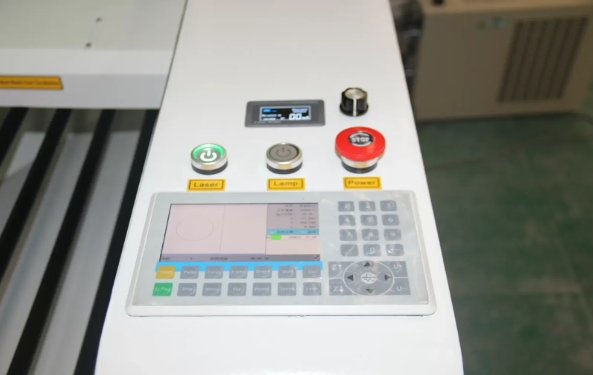

C. Control system
1. Ruida RD6445G control system

2. Support CorelDraw, Photoshop, AutoCAD, Illustrator, InkScape, etc.

D. Work table, Common working table include:
1. Up-down table: Mainly used for cutting and engraving thick materials
2. Knife table: It can be used for engraving and cutting hard materials.
3. Honeycomb table: Mainly used for relatively soft materials, such as leather, fabrics, etc.
4. Auto-feeding worktable:mainly used with fabric laser cutting machine

E. Peripheral equipment
1.Water chiller : Cooling the laser tube provides a stable operating environment for the laser tube.
2. Exhaust fan: Eliminate smoke.
3. Air compressor and Air pump: The function is to cool the material and the lens.

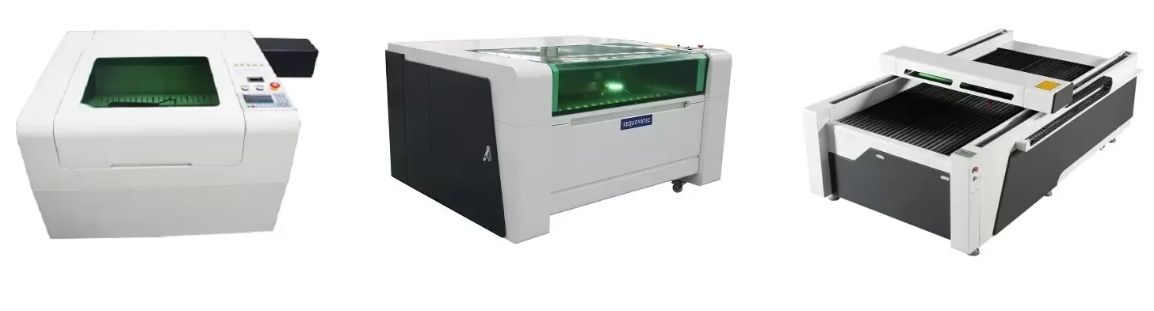

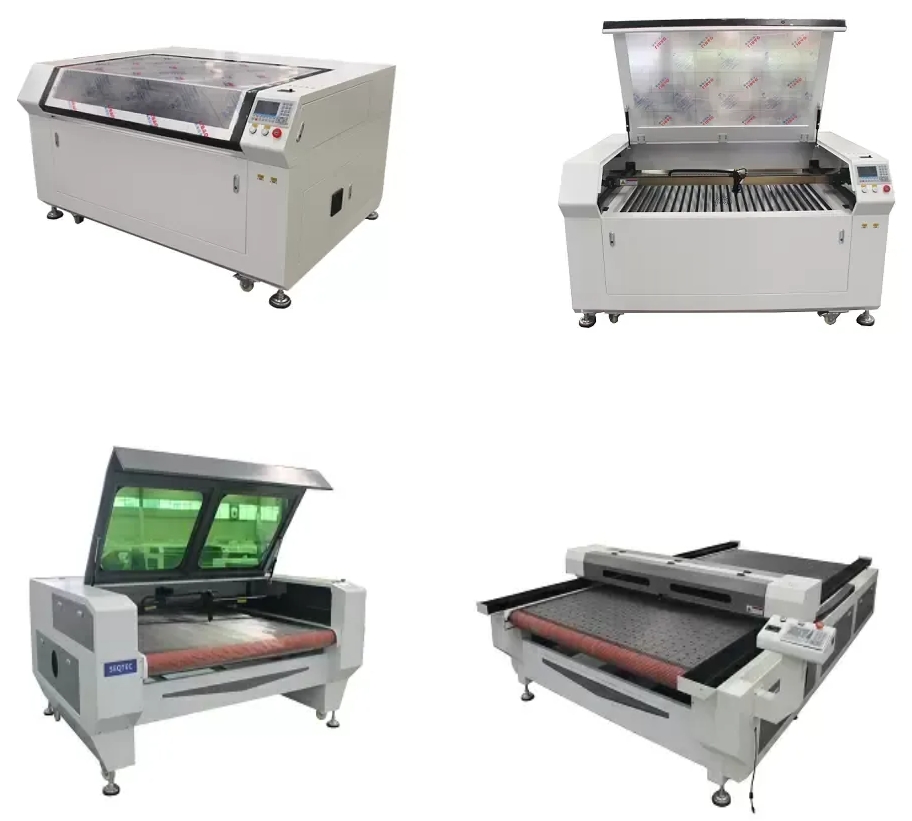

TOPIC 4: What are the different models of CO2 laser machine?

According to different laser powers,Jinan Sequoyatec Co., LTD.Provides CO2 laser machine with 40w 60w 80w 100w 130w and 150w, 180w, 250w, 300w. According to different working sizes, there are have : 600*400mm, 600*900mm, 1300*900mm, 1600*1000mm, 1300*2500mm. According to customer demand, other sizes can be customized.

TOPIC 5:How much does a CO2 laser machine cost? How to buy an affordable CO2 laser machine within your budget?

The CO2 laser machine cost is closely related with its configuration. Although the CO2 laser machine appearance sometimes you feel you see is almost the same, the realization of the function is the same of (cutting, engraving and so on), but according to the different configurations, its price, processing speed, machine service life will be different. Before you purchase, there are several items you have to confirm:

1. Learn about what material you wants to process by the CO2 laser machine. Non-metal material usually requires CO2 laser machine, but we also provide MIXED Cutting Machine that can cut thin stainless steel and carbon steel (within 3mm).

2. Select the appropriate machine working size according to the size of the product to be processed. However, it should be noted that the large working size of the machine is not necessarily good.Because machines with large working sizes are expensive, while some machines with poor quality have unstable laser output at various points on large-format surfaces, resulting in different shades of engraving products on the same table, so choosing the right working size is very important.

3. Check the type of work you want to use the CO2 laser machine for. If you process column material, such as glass cup, bottles, bamboo, egg, you have to requires the machine fits rotary device( rotary attachment) and moving table. The rotary devices are different for holding bottles and egg, so do remember list what type of work you do. Laser machines are designed for different applications, such as fabrics CO2 laser cutting machine, marble CO2 laser engraving machine, sign CO2 laser engraving machine, even label CO2 laser cutting, etc. Fabrics CO2 laser cutting machine requires special working table and support to hold Fabrics rollers, marble processing requires rolling table for lifting and moving easily, label cutting requires a scanner which could scan the edge of label to guide the laser head to cut. If this is something you want to invest in, buy a machine that can do that.

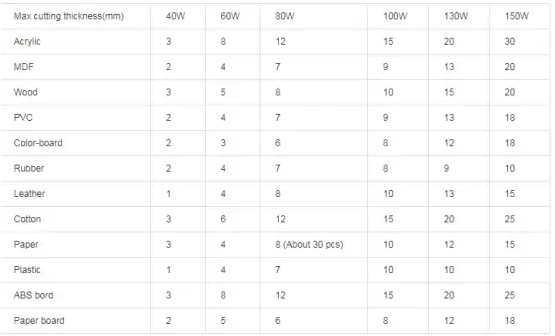

4. Check laser tube power you want. Wood cutting and paper cutting requires different laser tube power, cutting thickness also requires different power, so this is the important element you should consider too. If your work is mainly engraving, the 40w 60w or 80w laser power is a good choice.If your work is engraving and cutting, here is a form about cutting different thicknesses of materials with different laser power:

5. After-sales service of machinery is also very important, but people often fall into a wrong myth. They do not know that machinery of good quality are not easy to damage, so there is no need for frequent maintenance, but it is a machine with poor quality. Frequent damage requires special attention to this point. After-sales service has a direct impact on the production efficiency. If a machine that has been purchased fails to solve the problem, it will directly cause production to stop and cannot work. Therefore, after-sales service is very important. Therefore, when customers choose laser engraving machine products, they must actively understand the market, analyze the market, analyze which manufacturers produce better machines, the credibility is guaranteed, and which manufacturers have relatively good machine quality and better engraving effects. The information must take time to know.

6. Cooling system of the laser tube: the steady operation of the laser machine is largely dependent on the cooling system of the glass laser tube. Any problems with the cooling system may cause the laser tube failure. Therefore the laser machine has to be equipped with a water-cooling unit or chiller to cool the laser tube. The chiller keeps the water temperature at the given level. Freon gas which does not destroy the ozone layer is used as the refrigerant. The chiller provides the steady operation of the laser tube. If you buy a laser machine with the cooling system which consists of a plastic tank and an aquarium compressor, we think that the supplier has disrespected you. The chiller must properly fit the laser machine and conform to power of the installed laser tube. Sometimes Some suppliers deliberately install the chiller which does not meet the requirements for cooling the laser tube. The cooling circuit of laser machine must be equipped with the water flow sensor as the additional protection of the water cooled laser tube. In case if the sensor detects the lack of flow or poor water circulation, the laser machine will power off the laser tube automatically thus protect it from damages and save your money and time. The lack of protection for the laser optical path against dirt and dust contamination in the laser tube. There is no built-in laser tube protection against dirt and dust contamination at the outlet of laser tube in the some laser machines that causes fast failure of laser tube and decreases laser power during operation.

7. WHY CHOOSE SEQUOYATEC CNC?

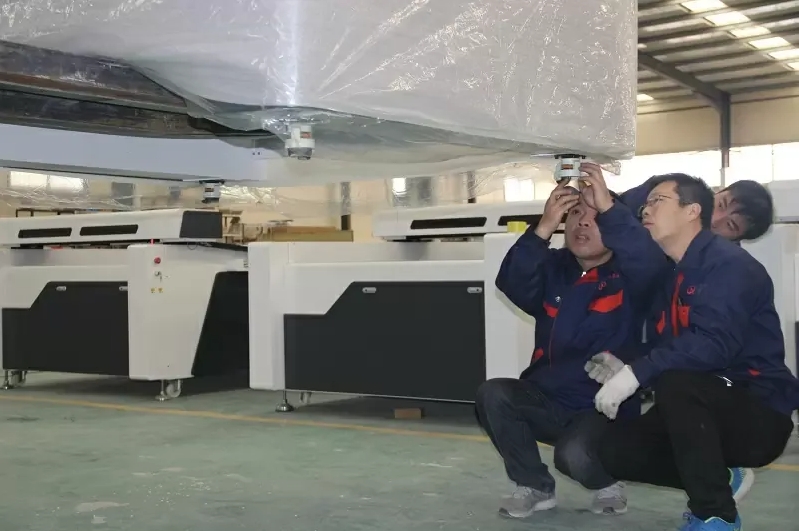

1). High quality Starting with purchase the original part of the machine, then production and installation of machinery. Finally, the complete CO2 laser machine will be tested to make sure they can work very well before being out of factory. In each process we pass strict quality checks to ensure that the machine is of high quality.
2). Affordable price Some customers are seeking cheap psychologic, before they place order,they do comparison just based on price and don’t care about quality, the results is obviously to be cheated and get some bad quality machine or machines that can’t do their works. Please remember that no one do lose money trading. We specify the price of the machine according to the quality of the machine and market conditions. Maybe our CO2 laser machine price not low, so if customers who only care about price,please go to other suppliers directly, we don’t do bad quality machine. Any customer who choose us finally,will never get disappoint,we believe that you will come again after first deal.
 3). Excellent after-sales service SEQUOYATEC has a professional technical team. Our engineer is professional on many issues, so if you have any problem about machine, our engineer will know why the problem happen, and tell you the solution. We offer 24 hours of online remote guide.
