4 Axis CNC Router ST1530-4A Venta de precios de costos
Actual: HOME> PRODUCTS> CNC Router>

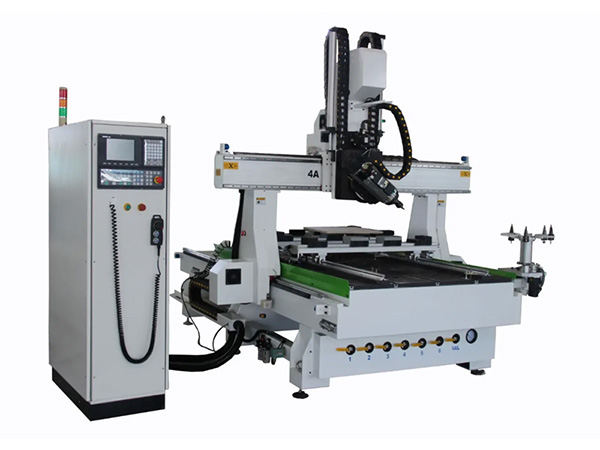

4 Axis CNC Router ST1530-4A

4 axis cnc router,spindle can rotate ±90° it’s able to process material from side slot milling, drilling, cutting.
GET A QUOTE SEND AN EMAIL
Details
Machine Features：

・Adopting Italian high-speed electric spindle, the maximum spindle speed is 10000RPM (foam) and 24000 (wood mold) to ensure the optimization of machining efficiency;

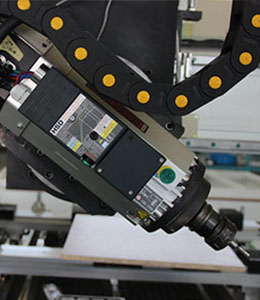

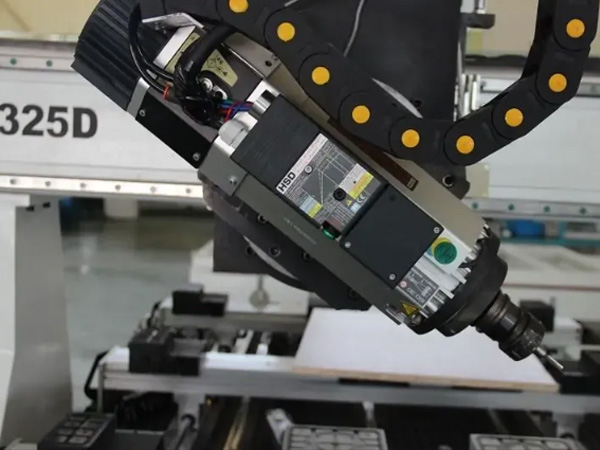

・Pendulum Spindle Movement：±90°;

Application:

・Foam processing,Model processing etc
・Wood, foam,etc;

Technical Parameters

Model

ST1530-4A

Traveling Size 1500*3000*600mm
Transmission X/Y rack and pinion drive, Z ball screw drive
Traveling Speed ≥45000mm/min
Working Speed ≥20000mm/min
Spindle Power HSD 9 kw ATC spindle
Spindle Speed 24000r/min
Driving System Yaskawa

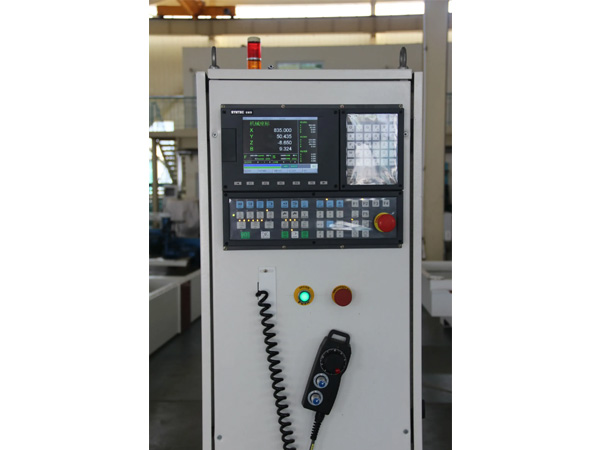

Controller Syntec/Osai

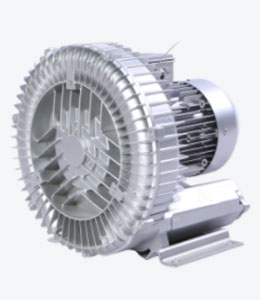

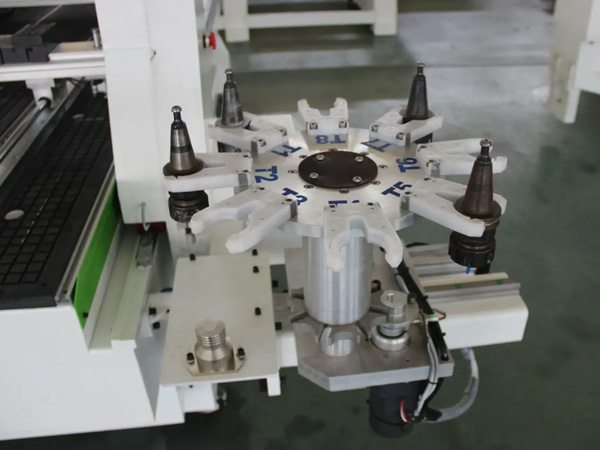

Accessories:

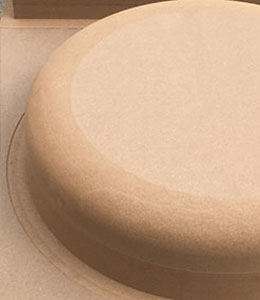

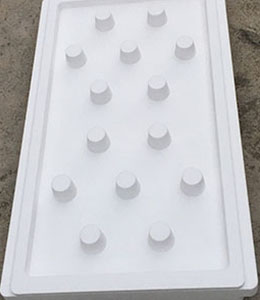

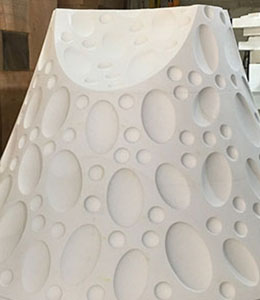

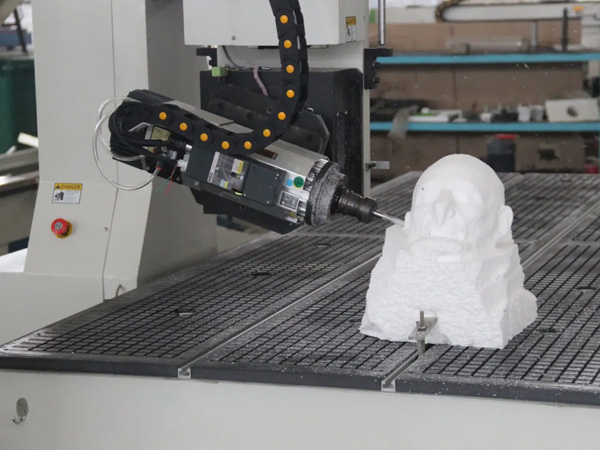

Sample show:





  • Pre： None
  • Next: 5 Axis CNC Router ST1530-5A
